Screamin' Eagle Stage IV Kit - 121CI to 135CI

$4,574.95

Part Number: 92500143
Quantity:
1
Members get Free Shipping over $50 & earn 13725 reward points on this purchase.
or

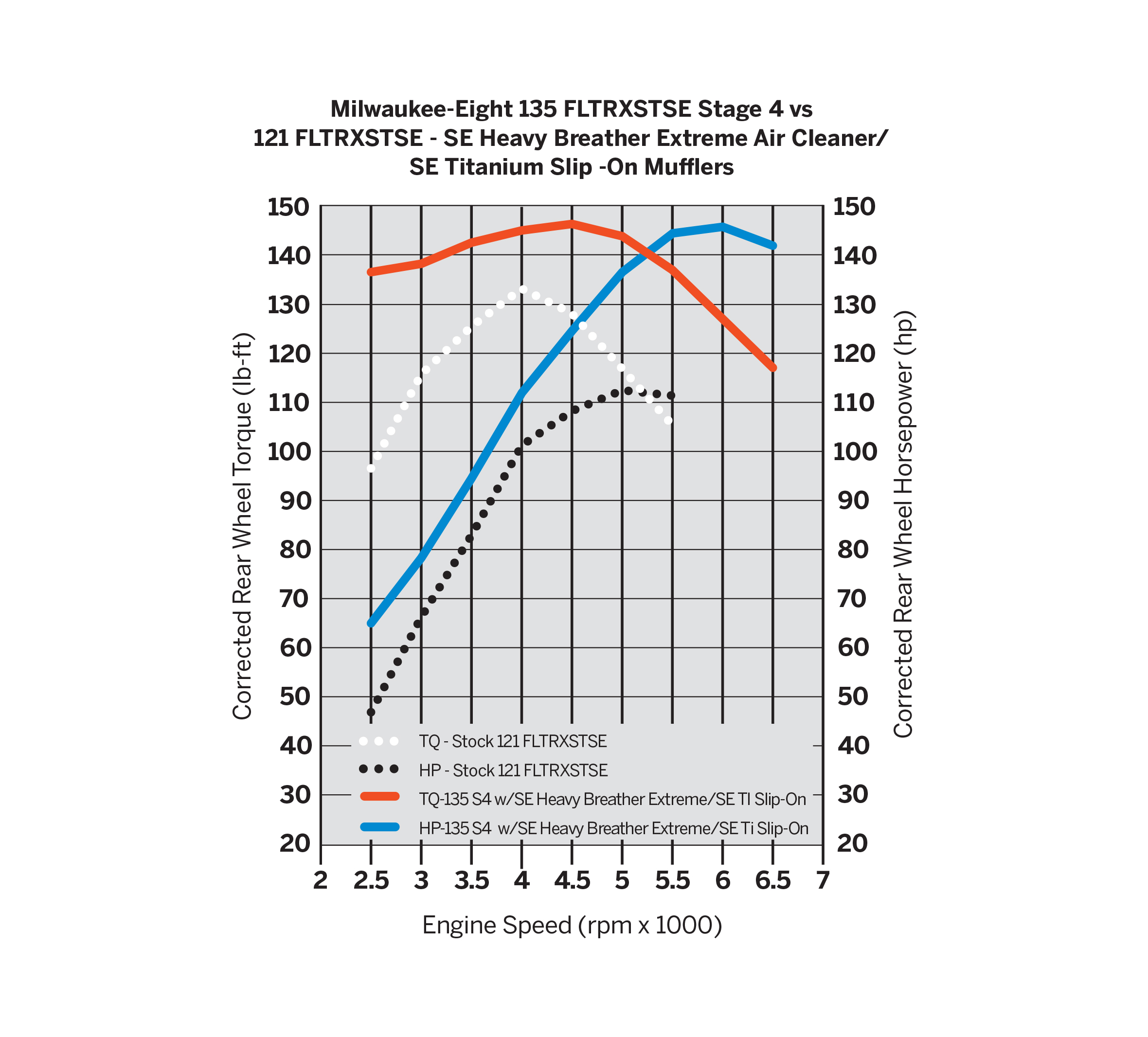

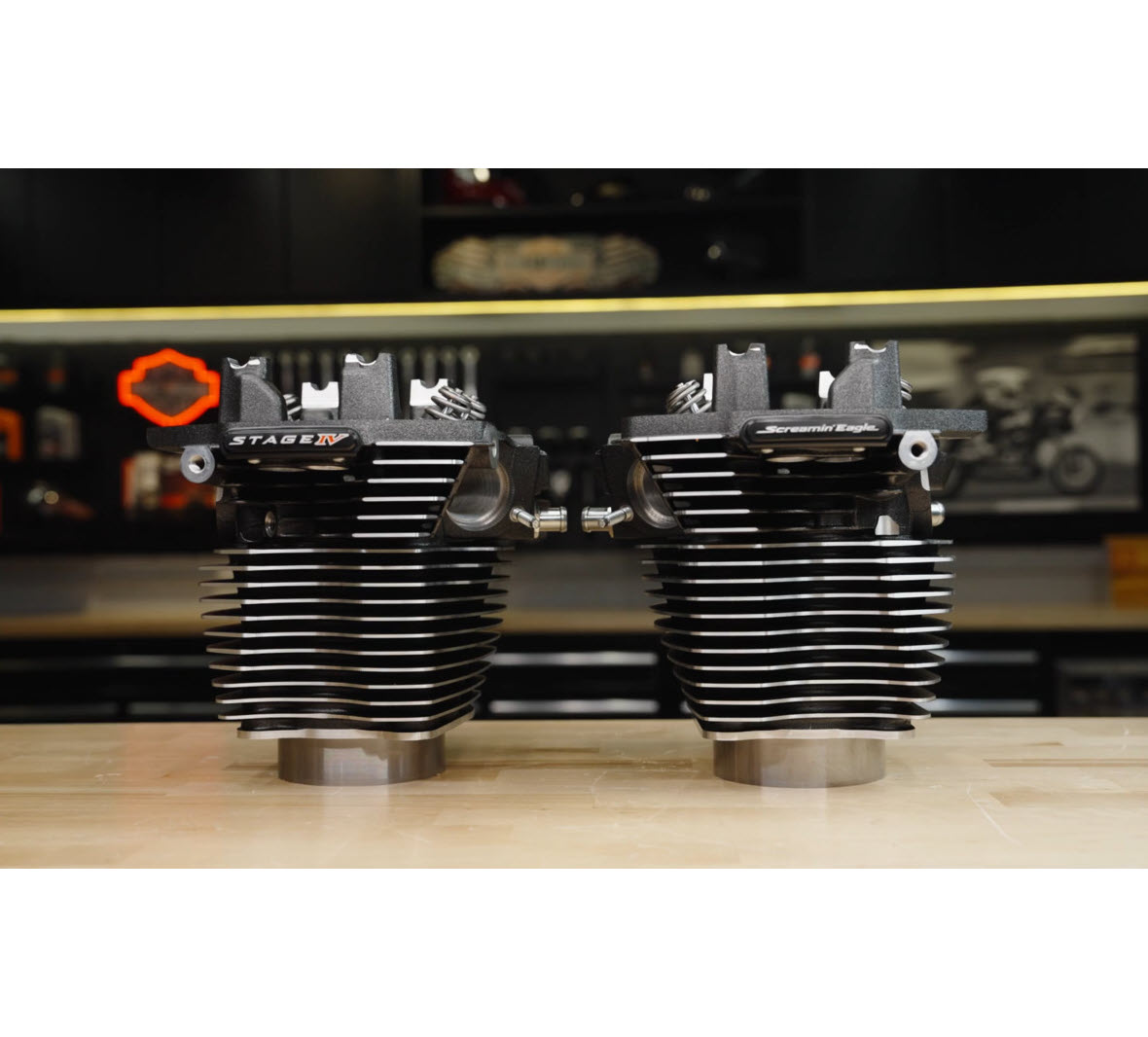

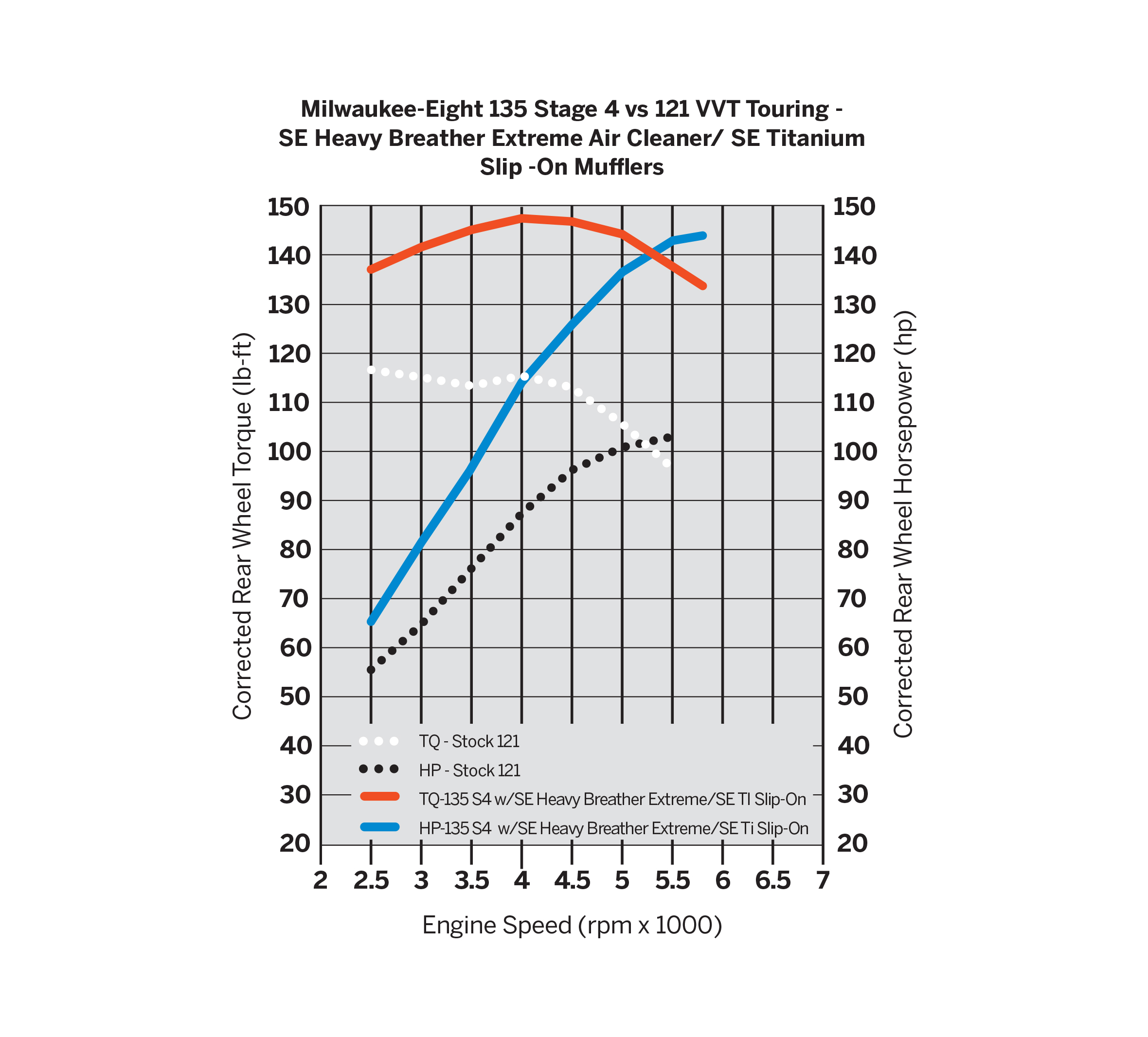

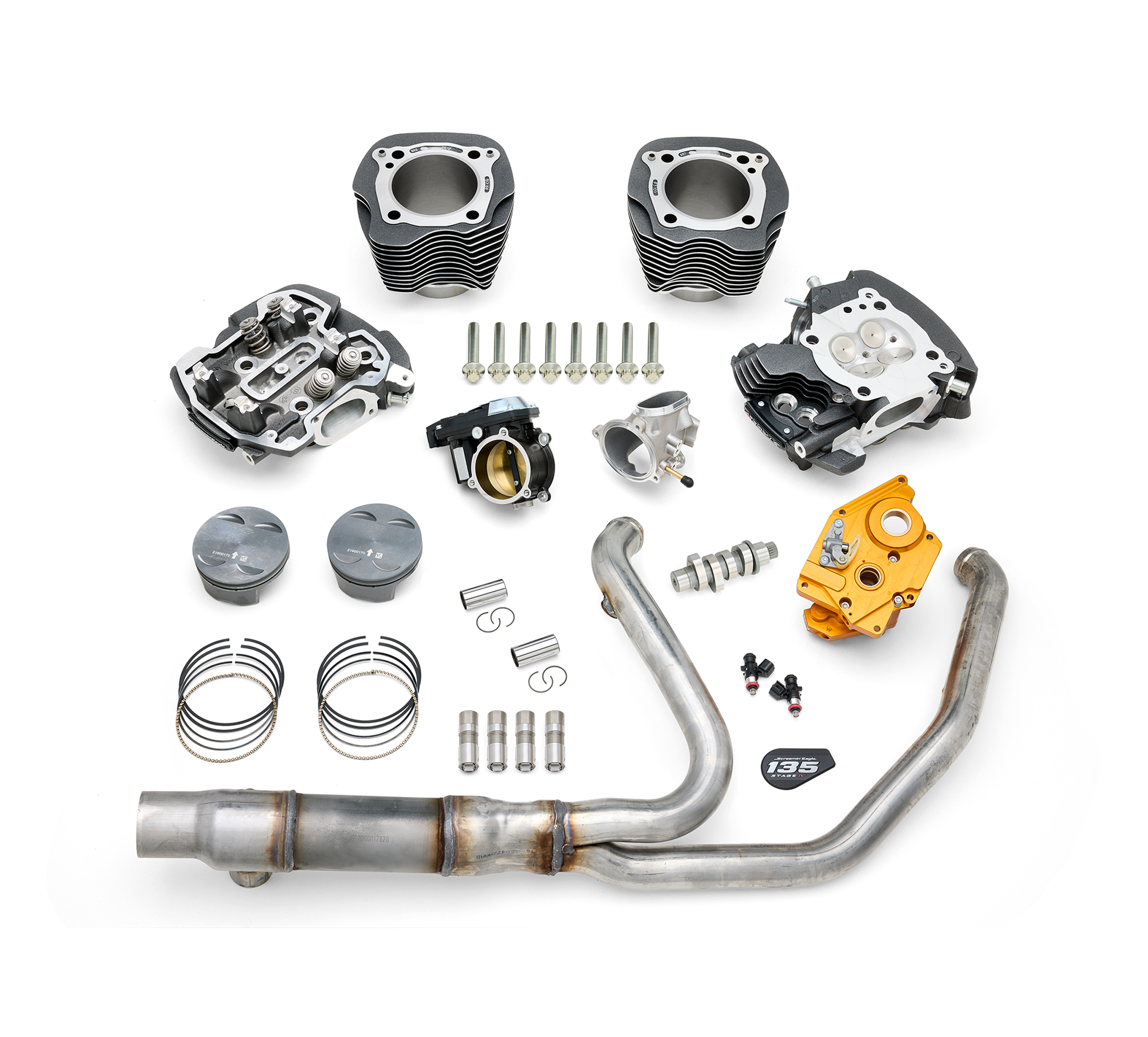

For the rider demanding no-compromise performance. With the largest displacement and the most power of any Harley-Davidson® Stage Kit, this 121ci to 135ci Stage IV Kit was engineered by the pros at Harley-Davidson to deliver instant arm-stretching torque through the entire rpm range. Made for riders seeking maximum displacement, compression, and flow, it delivers 144 horsepower and 149 ft-lb of torque to the rear wheel! This Stage IV Kit features the finest Screamin’ Eagle® components. Many of these new components were informed by extensive testing by the Harley-Davidson Factory Racing Team for the King of the Baggers racing series. The Stage IV kit consists of: All-new Screamin' Eagle® Extreme CNC-ported cylinder heads, 68mm throttle body and new cast 68mm intake manifold, new SE8-550 high-lift cam and 6.8 g/sec fuel injectors work together to feed the engine large volumes of air and fuel to help maximize power. New forged high-compression pistons and rings are designed to withstand increased combustion forces. Also includes high-performance tappets, new patent-protected 4.31" steel sleeve cylinders, and Screamin' Eagle® Pro Billet Cam Plate and Oil Pump. Screamin’ Eagle and Stage IV badging on the cylinder heads and timer cover highlights the powerplant.

  • Black Granite

  • We’ve done your homework - Engineered and tested as a complete collection of high-performance components by the Screamin’ Eagle® pros at Harley-Davidson

  • This combination is designed for wide open throttle along with high end RPMs and a significant torque increase from a cruising speed

  • Provides thrilling acceleration when twisting the throttle

  • Can be installed without removing the engine from chassis. For models originally equipped with Variable Valve Timing (VVT), VVT will not be retained with this performance Stage IV kit.

  • Screamin’ Eagle products are not available for sale and are not street legal in all countries. Please contact your local dealer for more information

Fits '23-later FLHXSE and FLTRXSE, '24-later FLTRXSTSE and '26-later FLHXL, FLHXLSE, FLHXSTSE and FLTRXL models. '23-'24 models require separate purchase of cylinder head retrofit kit P/N 29900147. Models factory equipped with VVT require a separate purchase of P/N 18400117 and 25400103, as the VVT will not be retained. Requires ECM recalibration with Pro Street Tuner for proper installation. Does not fit California models.

Installation Instructions

Dealer Install Recommended:

Yes

ECM Calibration Required:

Yes

Sold Separately:

Pro Street Tuner P/N 41001141

Sold In Units:

Each

Screamin' Eagle Stage Upgrade:

Stage IV

In the Box:

See Description above for details

WARRANTY:

1 year limited warranty – Go to www.h-d.com/warranty for full details

Certification:

49-State U.S. EPA compliant

Harley-Davidson® motorcycles modified with some Screamin’ Eagle® Performance products must not be used on public roads and, in some cases, may be restricted to closed-course competition. These performance parts are 49-state U.S. EPA compliant but are NOT compliant for sale or use in California on pollution-controlled motor vehicles. California guidelines on tampering can also lead to substantial fines and penalties. Screamin’ Eagle® Performance products are intended for the experienced rider only.
