CoolFlow Fan

Part Number: 26800128

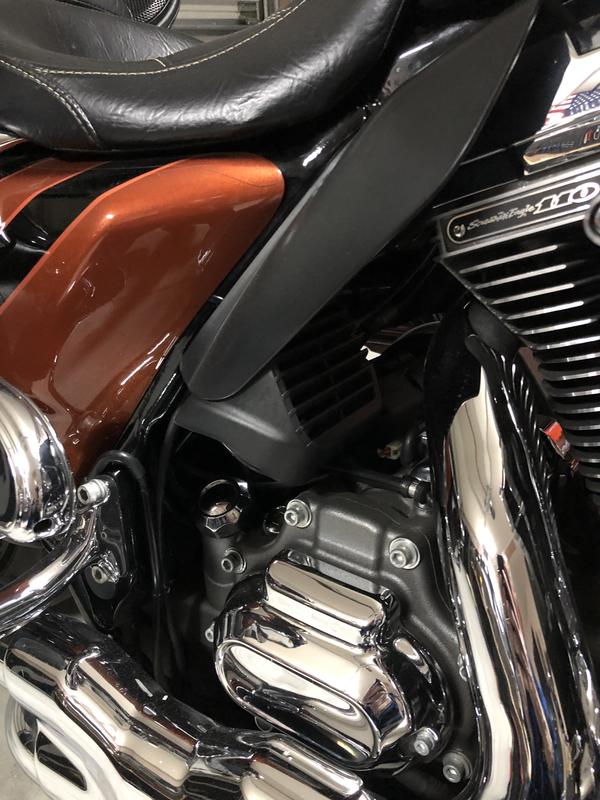

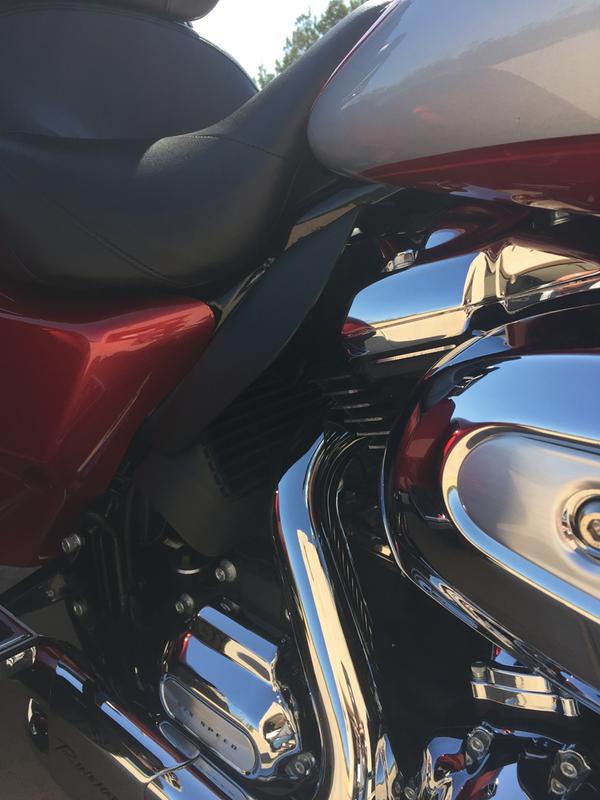

Keep your cool on a sweltering summer day. Engineered to maximize rider and passenger comfort in high temperature situations, the CoolFlow Fan is the perfect addition if your bike is subjected to parade duty, rush hour traffic, or extreme temperature environments. Unlike traditional fan kits that try to cool the engine by blowing air across the cylinders and often onto your legs, the CoolFlow Fan keeps the riders comfortable by drawing the heated air away from the rear cylinder and exhaust pipe, and directing it toward the ground. Odometer fan status display feature availability varies by model and may not be available for your vehicle

...read more
Keep your cool on a sweltering summer day. Engineered to maximize rider and passenger comfort in high temperature situations, the CoolFlow Fan is the perfect addition if your bike is subjected to parade duty, rush hour traffic, or extreme temperature environments. Unlike traditional fan kits that try to cool the engine by blowing air across the cylinders and often onto your legs, the CoolFlow Fan keeps the riders comfortable by drawing the heated air away from the rear cylinder and exhaust pipe, and directing it toward the ground. Odometer fan status display feature availability varies by model and may not be available for your vehicle

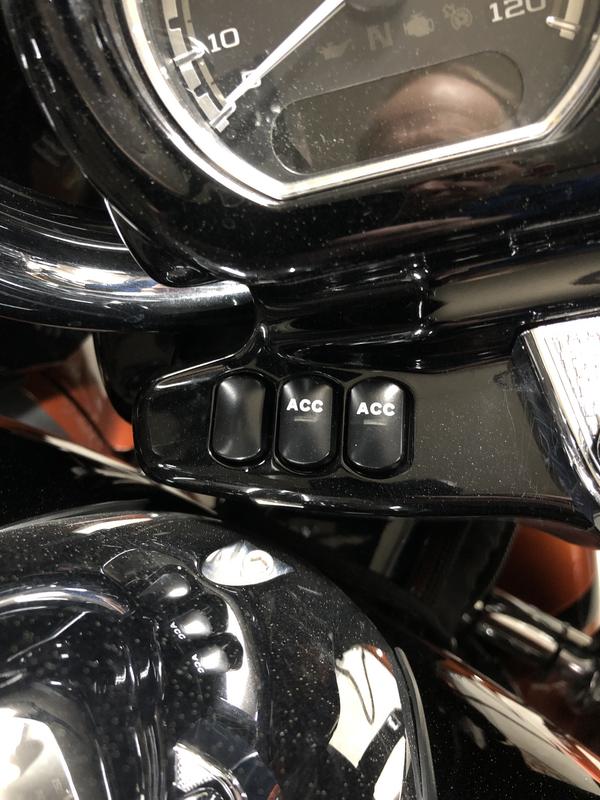

Features switched On/Off/Auto operation
In the “ON” mode, the fan is active at low speeds, and will turn off when the bike reaches 40mph
As speed lowers, the fan turns back on at 35mph -this gap is intentional to prevent the fan from cycling on and off during low speed changes
In the “AUTO” setting, the fan operates based on a combination of slow vehicle speed and specific engine and ambient temperatures
100% waterproof
Includes everything needed for installation & replacement right side Mid-Frame Air Deflector
Odometer fan status display feature availability varies by model and may not be available for your vehicle
Dealer Digital Technician update is required

Fits '17-later FLHTCU, FLHTCUTG, FLHTCUTGSE, FLHTK, FLHTKL, FLHTKSE, FLHTP, and FLTRK. '17-19 FLTRU. Does not fit with Starter End Cover P/N 31400088 and 31400090. FLHTCUTG (HDI, ENG, HDJ configurations only), FLHTP and FLTRU models require separate purchase of Switch Pack P/N 69200173 and Switch Buttons (2) P/N 71400031. Includes replacement right side Mid-Frame Air Deflector. Dealer Digital Technician update is required.

Sold In Units: Each
In the Box: Fan assembly, hardware, mid-frame deflector, switch, cable straps, relay harness
WARRANTY: 1 year limited warranty – Go to www.h-d.com/warranty for full details
