Screamin' Eagle Twin Cam Bolt-On 110CI to 117CI Kit

Part Number: 92500054
Color: Black
Qty
Only in stock
Only in stock for pickup

View Similar Items

Item is sold out but can be back ordered:

Learn More

Or be notified when back in stock.

Notify me when this item is available.
Item will be sold in-store only.
Add to Cart

Item Limit Error

Turn your Original Equipment 110 cubic inch model into a fast, reliable 117 cubic inch Twin Cam hauler without having to remove the motor from the chassis. This Street Performance Kit combines system-matched Screamin’ Eagle® big bore cylinders, forged pistons and performance cams and valve train components with the Original Equipment cylinder heads for a cost-effective boost in torque and performance.

...Read More
Screamin' Eagle Twin Cam Bolt-On 110CI to 117CI Kit
Turn your Original Equipment 110 cubic inch model into a fast, reliable 117 cubic inch Twin Cam hauler without having to remove the motor from the chassis. This Street Performance Kit combines system-matched Screamin’ Eagle® big bore cylinders, forged pistons and performance cams and valve train components with the Original Equipment cylinder heads for a cost-effective boost in torque and performance.
Black finish
Exclusive bolt-on 4.125" cylinders are engineered with high strength slim-wall spigots that slip into the factory 110CI crank case without any additional machining
4.125" flat top pistons team with the stock cylinder heads to produce a performance-enhancing 9.9:1 compression ratio
High-lift SE-259E cam produces a boost in torque throughout the RPM range
All EFI-equipped models require dealer-installed ECM calibration download or use of the tunable Screamin' Eagle® Street Tuner Kit* (priced separately)
Recalibration is required for proper installation, See Dealer for details, Labor cost not included

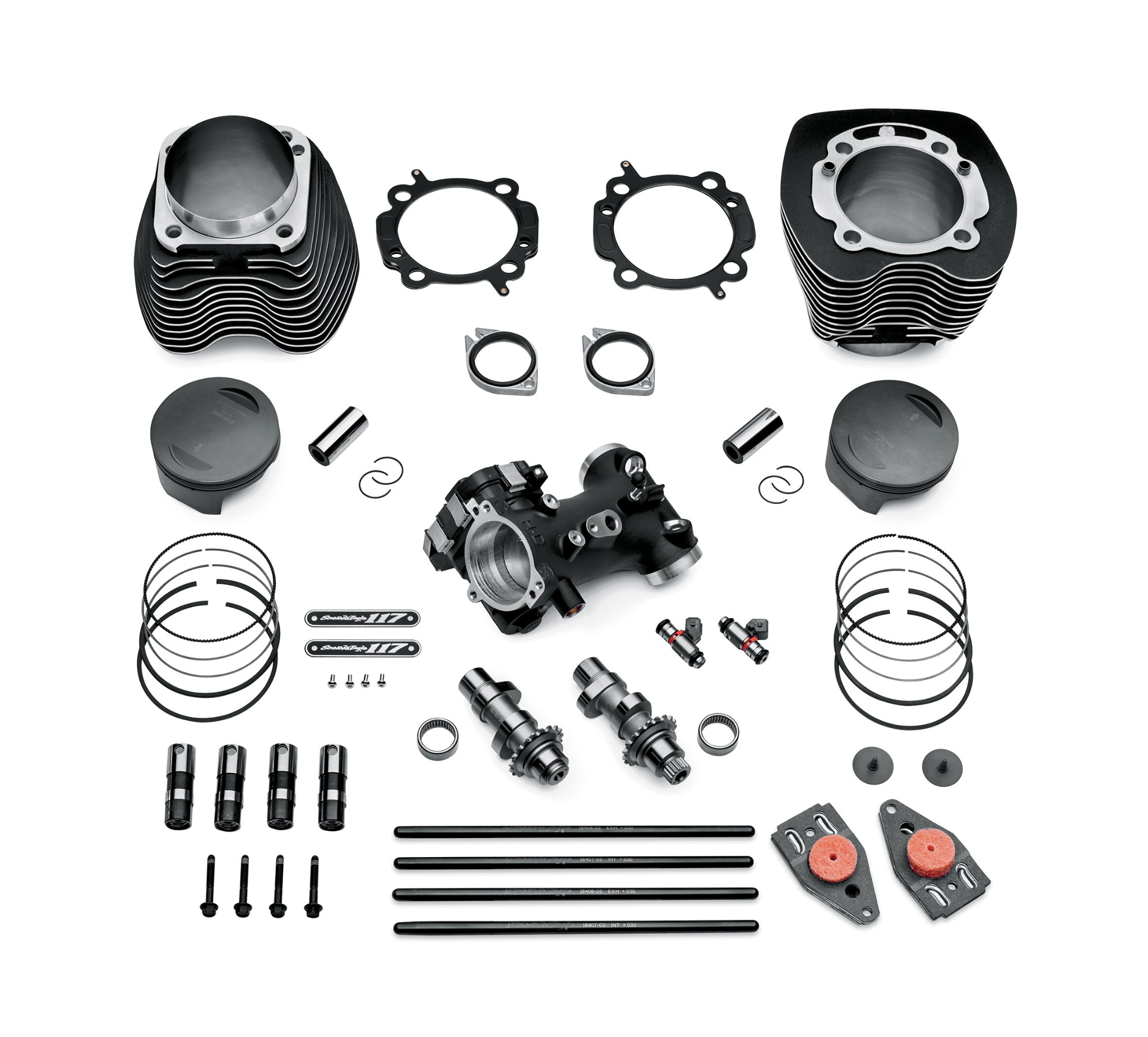

Includes 4.125" Bolt-On Cylinders, Forged 9.9:1 Compression Pistons & Rings, 58mm Throttle Body, High Flow Fuel Injectors, SE-259E Cams, Perfect-Fit Pushrods, High-Capacity Roller Tappets, Inner Cam Bearing, Top End & Cam Cover Gasket

Fits ’14-'17 CVO 110CI Softail® and '14-'16 CVO Touring models. Also fits ’16-'17 110CI FLSS, FLSTFBS and FXDLS models. Requires purchase of accessory 58mm air cleaner and Cam Drive Retention Kit P/N 25566-06 (except models equipped with Screamin' Eagle® Heavy Breather Elite Performance Air Cleaner Kits). Models equipped with Ventilator Air Cleaner require separate purchase of 58mm Air Cleaner Backplate P/N 29400038. All models required ECM calibration for proper installation. '16-'17 FXDLS and all '17 models require reclibration with Screamin' Eagle® Pro Street Tuner (sold separately) or dealership installed Screamin’ Eagle calibration.

ECM Calibration Required: Yes
Sold Separately: Click the Fitment tab above for details
Sold In Units: Each
Screamin' Eagle Stage Upgrade: Stage IV
In the Box: 4.125" Bolt-On Cylinders, Forged 9.9:1 Compression Pistons and Rings, 58mm Throttle Body, High Flow Fuel Injectors, SE-259E Cams, Perfect-Fit Pushrods, High-Capacity Roller Tappets, Inner Cam Bearing Kit, Top End and Cam Cover Gaskets
WARRANTY: 1 year limited warranty – Go to www.h-d.com/warranty for full details
These Screamin’ Eagle® products are 50-State U.S. EPA compliant for sale and use on all applicable vehicles, including those that are pollution controlled. See Genuine Motor Parts and Accessories or Screamin’ Eagle Accessories catalog for fitment information. Screamin’ Eagle Performance products are intended for the experienced rider only.
