360 View

2024 Breakout 117

£24,795

Starting Price

Trim:
Colour:
Base Color
£24,795
Premium Color
+ £500
*Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
At a glance

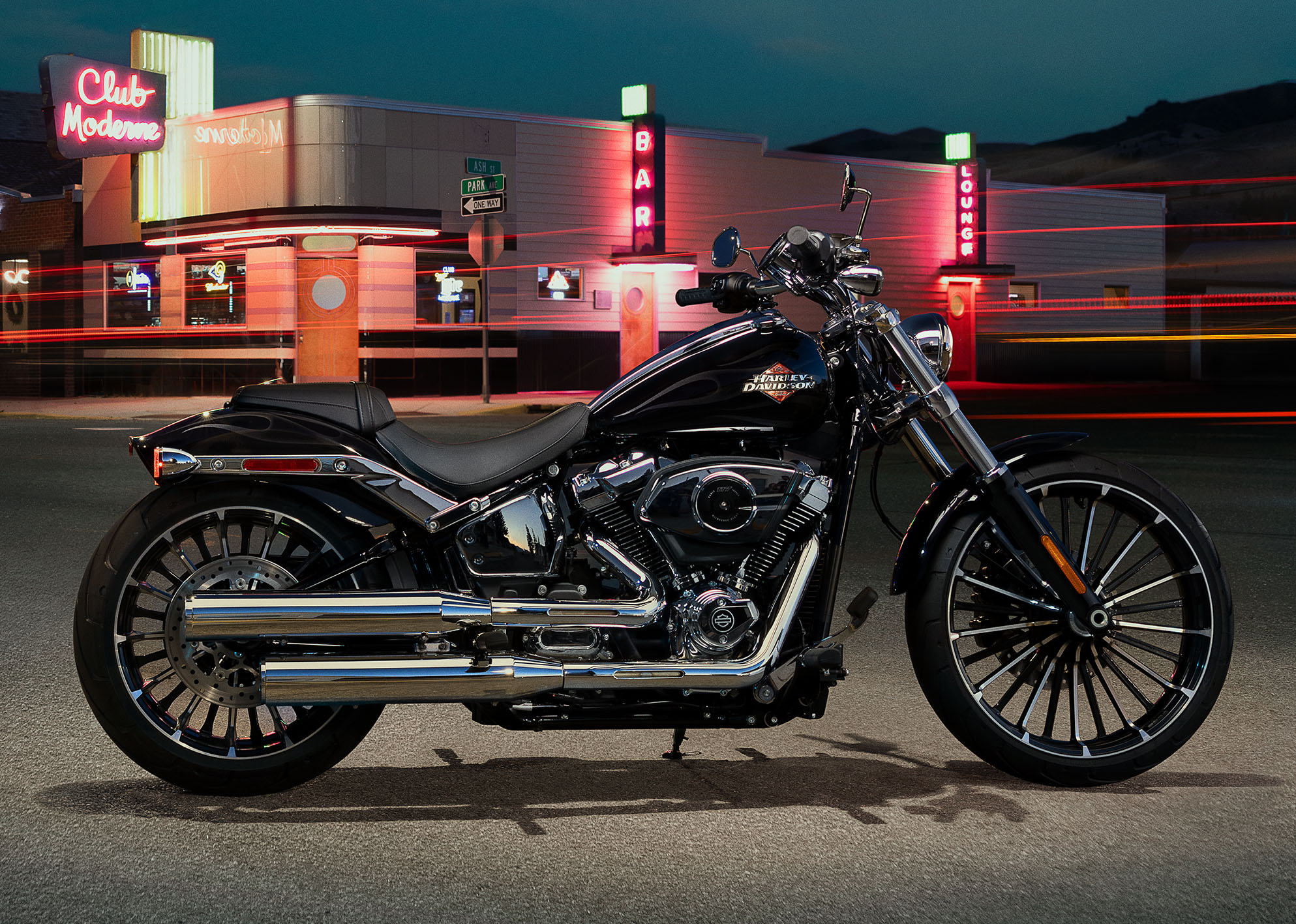

Dripping with chrome, the Harley-Davidson Breakout 117 is a raked-out cruiser that packs Milwaukee-Eight 117 V-Twin muscle.

  • Stretched riding position
  • Forward foot controls
  • Passenger seat
  • Low
  • Rider safety enhancements standard
Detailed Specs
Length
2,370 mm
Seat Height, Unladen
665 mm
Ground Clearance
115 mm
Rake
34
Trail
145 mm
Wheelbase
1,695 mm
Tire, Type
Michelin Scorcher 11, front and rear
Tires, Front Specification
130/60B21,63H,BW
Tires, Rear Specification
240/40R18,79V,BW
Fuel Capacity
18.9 l
Oil Capacity (w/filter)
4.7 l
Weight, As Shipped
296 kg
Weight, In Running Order
310 kg
Engine 2
Milwaukee-Eight 117
Bore
103.5 mm
Stroke
114.3 mm
Displacement
1,923 cc
Compression Ratio
10.2:1
Fuel System
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-2 staggered; catalyst in muffler
Engine Torque Testing Method
EC 134/2014
Engine Torque 3
168 Nm
Engine Torque (rpm)
3500
Horsepower
102 HP / 76 kW @ 5020 rpm
Lean Angle, Right (deg.)
26.8
Lean Angle, Left (deg.)
26.8
Fuel Economy Testing Method
EU 134/2014
Fuel Economy
5.6 l/100 km
CO2 Emissions Testing Method
EU 134/2014
CO2 Emissions
135 g/km CO2
Primary Drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.311
Gear Ratios (overall) 2nd
6.454
Gear Ratios (overall) 3rd
4.793
Gear Ratios (overall) 4th
3.882
Gear Ratios (overall) 5th
3.307
Gear Ratios (overall) 6th
2.79
Front Fork
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
Rear Shocks
Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment
Wheels, Front Type 4
Gloss black, 26-spoke cast aluminum
Wheels, Rear Type 4
Gloss black, 26-spoke cast aluminum
Brakes, Caliper Type
4-piston fixed front and 2-piston floating rear
Brakes, Rotor Type
Front and rear black, Split 7-spoke floating rotors
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights
All LED, low beam, high beam and signature position lamp; Integrated, multi-function LED stop/tail/turn signals; Incandescent bullet turn signals; Integrated, multi-function LED stop/tail/turn signals
Gauges
2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
Anti-lock Brake System (ABS)
Included
Traction Control System (TCS)
Included
