2024 Sportster™ S
Starting at
$23,995 MSRP
Key Features
REVOLUTION® MAX 1250T ENGINE
Featuring double-overhead camshafts and variable valve timing, the Revolution Max 1250T is a liquid-cooled powertrain designed to give you a strong burst of power when you want it and help you stay in control while riding.
RIDER TECHNOLOGY
Choose from three pre-programmed Ride Modes—Sport, Road, or Rain—or create your own custom mode with specific settings for power delivery, engine braking, and cornering.
HIGH-MOUNTED EXHAUST
Inspired by the glory days of H-D flat-track racing, the pipes are crafted from corrosion-resistant, 304-series stainless steel and engineered to deflect exhaust heat away from the rider’s legs and the bike’s tail section.

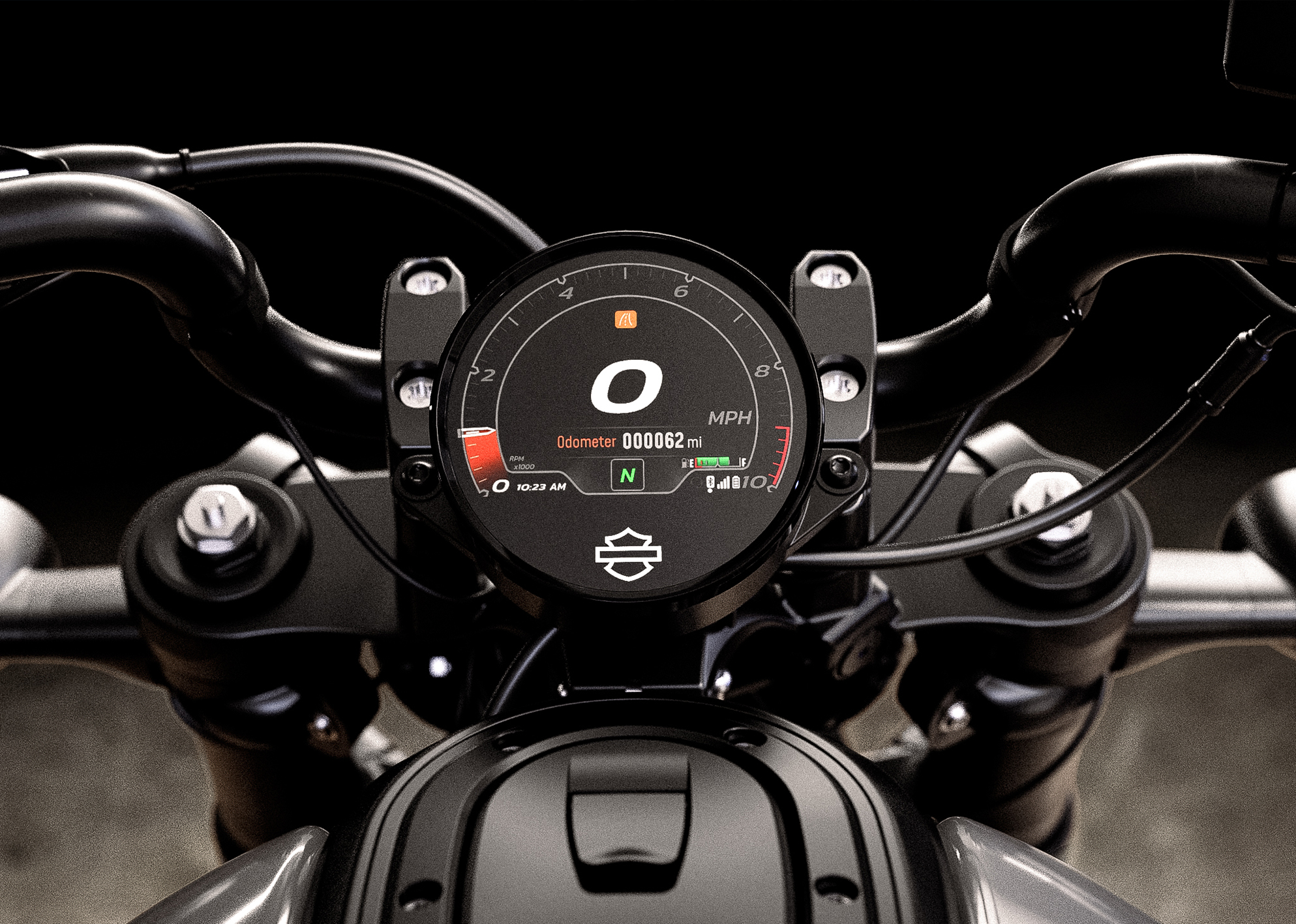

INSTRUMENTATION
Bluetooth™-equipped, four-inch-round, thin-film transistor display shows digital gauges, indicators, ride modes, and turn-by-turn navigation when paired with the Harley-Davidson mobile app.
CHASSIS
The Revolution Max 1250T is a structural component of the motorcycle chassis, which significantly reduces overall weight, lowers the center of gravity, and improves handling.
Technical Specifications
Length
2,270 mm
Seat Height, Unladen
765 mm
Ground Clearance
90 mm
Rake
30
Trail
148 mm
Wheelbase
1,520 mm
Tyres, Type
Dunlop™ Harley-Davidson Series, radial
Tyres, Front Specification
160/70R17 73V
Tyres, Rear Specification
180/70R16 77V
Fuel Capacity
11.8 l
Oil Capacity (w/filter)
4.5 l
Weight, As Shipped
221 kg
Weight, In Running Order
228 kg
Engine
Revolution™ Max 1250T
Bore
105 mm
Stroke
72.3 mm
Displacement
1,252 cc
Compression Ratio
12.0:1
Fuel System
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-1-into-2; catalyst in muffler
Engine Torque Testing Method
EC 134/2014
Engine Torque
126 Nm
Engine Torque (rpm)
6000
Horsepower
119 HP / 89 kW @ 7500 rpm
Lean Angle, Right (deg.)
34
Lean Angle, Left (deg.)
34
Fuel Economy Testing Method
EU 134/2014
Fuel Economy
5.1 l/100 km
Primary Drive
Gear, 49/89 ratio
Gear Ratios (overall) 1st
12.21
Gear Ratios (overall) 2nd
9.022
Gear Ratios (overall) 3rd
6.994
Gear Ratios (overall) 4th
5.641
Gear Ratios (overall) 5th
4.731
Gear Ratios (overall) 6th
4.131
Front Fork
43 mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps.
Rear Shocks
Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability
Wheels, Front Type
Aluminum cast, satin black
Wheels, Rear Type
Aluminum cast, satin black
Brakes, Caliper Type
Front: radially mounted, monoblock, 4-piston caliper Rear: floating, single piston caliper
Brakes, Rotor Type
Front: single rotor, floating, tower- mounted Rear: solid uniform expansion rotor
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights
All LED headlamp, low and high beam with signature position lighting; All LED rear lighting; LED bullet turn signals
Gauges
4 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY)
Screen Size
102 mm
Type
Color TFT
Headset Specifications (if equipped)
Bluetooth
Languages
Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese
Hands-free Mobile Phone - via Bluetooth
Standard
Voice Recognition Languages: Phone functions only
Phone dependent
Voice Recognition Languages: Tuner/Media/Navigation
Phone dependent
Rider/Passenger Intercom
Headset function only
Vehicle Information Screen (Air temperature, oil pressure and EITMS)
TPMS, Engine temp, Battery Voltage, Ambient Air Temp
Text-to-Speech (TTS) Languages
Phone dependent
USB
Charging and Instrument update, USB-C, 5V, 3A
Bluetooth
Phone/Media Supported
Anti-lock Brake System (ABS)
Included
Traction Control System (TCS)
Included
Drag-torque Slip Control System (DSCS)
Included
Tire Pressure Monitoring System (TPMS)
Included
Wheel Lift Mitigation
Included
Cornering Enhanced Anti-lock Brake System (C-ABS)
Included
Cornering Enhanced Traction Control System (C-TCS)
Included
Cornering Drag-Torque Slip Control System (C-DSCS)
Included
Enhanced Lift Mitigation
Included
