2024 Nightster

Trim:
Colour:
See your local dealer for pricing information.
*Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
At a glance

Designed to inspire riders of all skill levels, the Harley-Davidson Nightster introduces a new narrative in the Sportster story.

  • Forward riding position
  • Mid-mount foot controls
  • Low
  • A2 compatible
  • Rider safety enhancements standard
Detailed Specs
Length
2,250 mm
Seat Height, Unladen
705 mm
Ground Clearance
110 mm
Rake
30
Trail
137 mm
Wheelbase
1,545 mm
Tire, Type
Dunlop Harley-Davidson Series Bias Blackwall
Tires, Front Specification
100/90-19 57H
Tires, Rear Specification
150/80B16 77H
Fuel Capacity
11.7 l
Oil Capacity (w/filter)
4.5 l
Weight, As Shipped
211 kg
Weight, In Running Order
221 kg
Engine 2

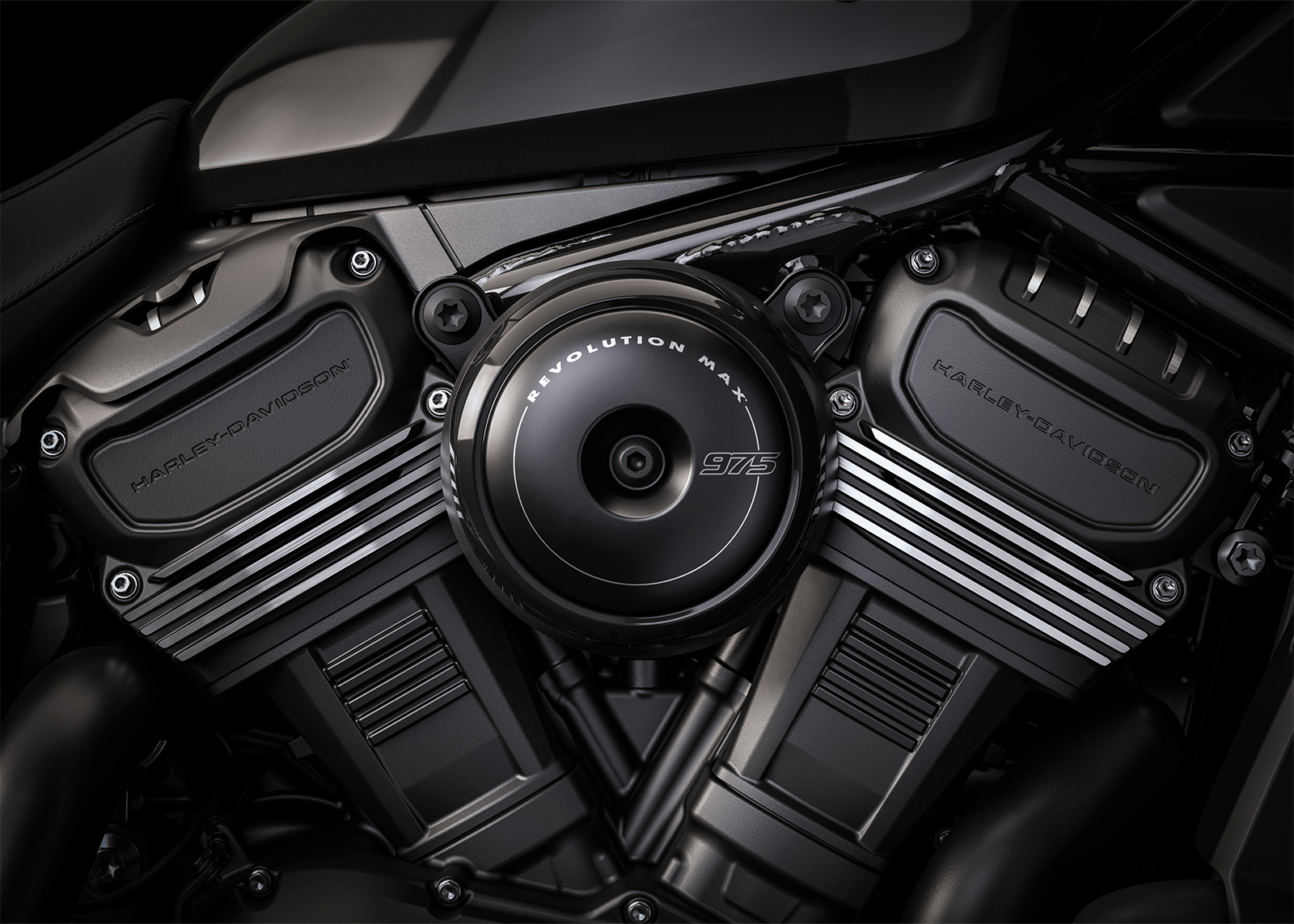

Revolution Max 975T
Bore
97 mm
Stroke
66 mm
Displacement
975 cc
Compression Ratio
12:1
Fuel System
Electronic Sequential Port Fuel Injection (ESPFI)

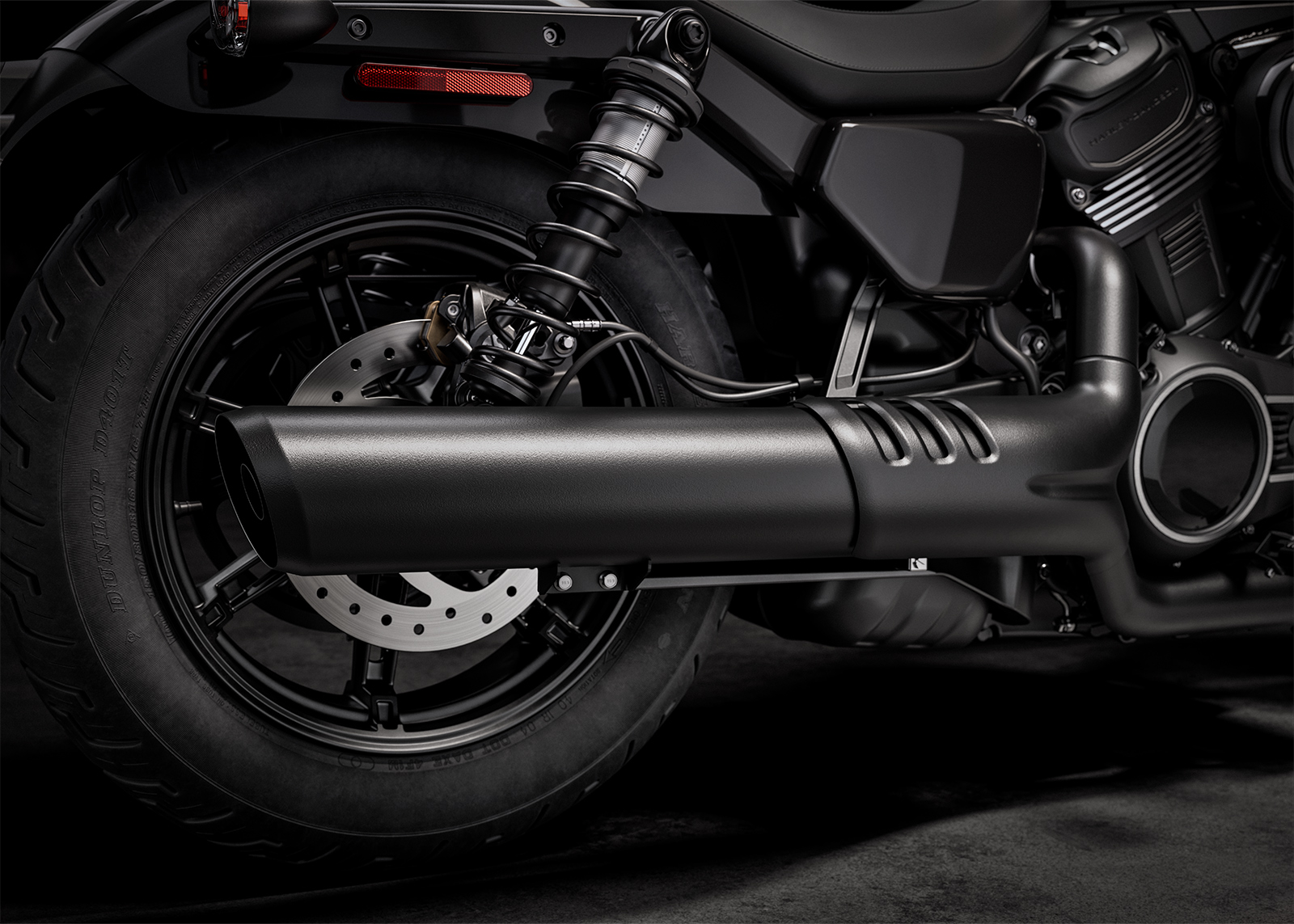

Exhaust
2-into-1; catalyst in header
Engine Torque Testing Method
EC 134/2014
Engine Torque 3
95 Nm
Engine Torque (rpm)
5750
Horsepower
89 HP / 66 kW @ 7500 rpm
Lean Angle, Right (deg.)
32
Lean Angle, Left (deg.)
32
Fuel Economy Testing Method
EU 134/2014
Fuel Economy
5.5 l/100 km
CO2 Emissions Testing Method
EU 134/2014
CO2 Emissions
130 g/km CO2
Primary Drive
Gear, 49/89 ratio
Gear Ratios (overall) 1st
12.21
Gear Ratios (overall) 2nd
9.022
Gear Ratios (overall) 3rd
6.994
Gear Ratios (overall) 4th
5.641
Gear Ratios (overall) 5th
4.731
Gear Ratios (overall) 6th
4.131
Front Fork
41 mm SHOWA Dual Bending Valve conventional forks. Aluminum fork triple clamps.
Rear Shocks
Rear suspension is dual outboard, direct-acting (no linkage) emulsion technology shock absorbers with coil springs and a threaded collar for pre-load adjustment.
Wheels, Front Type 4
Aluminum cast, satin black
Wheels, Rear Type 4
Aluminum cast, satin black
Brakes, Caliper Type
Front: axially mounted, 4-piston caliper; Rear: floating, single piston caliper
Brakes, Rotor Type
Front: single rotor, floating, hub - mounted; Rear: solid uniform expansion rotor
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights

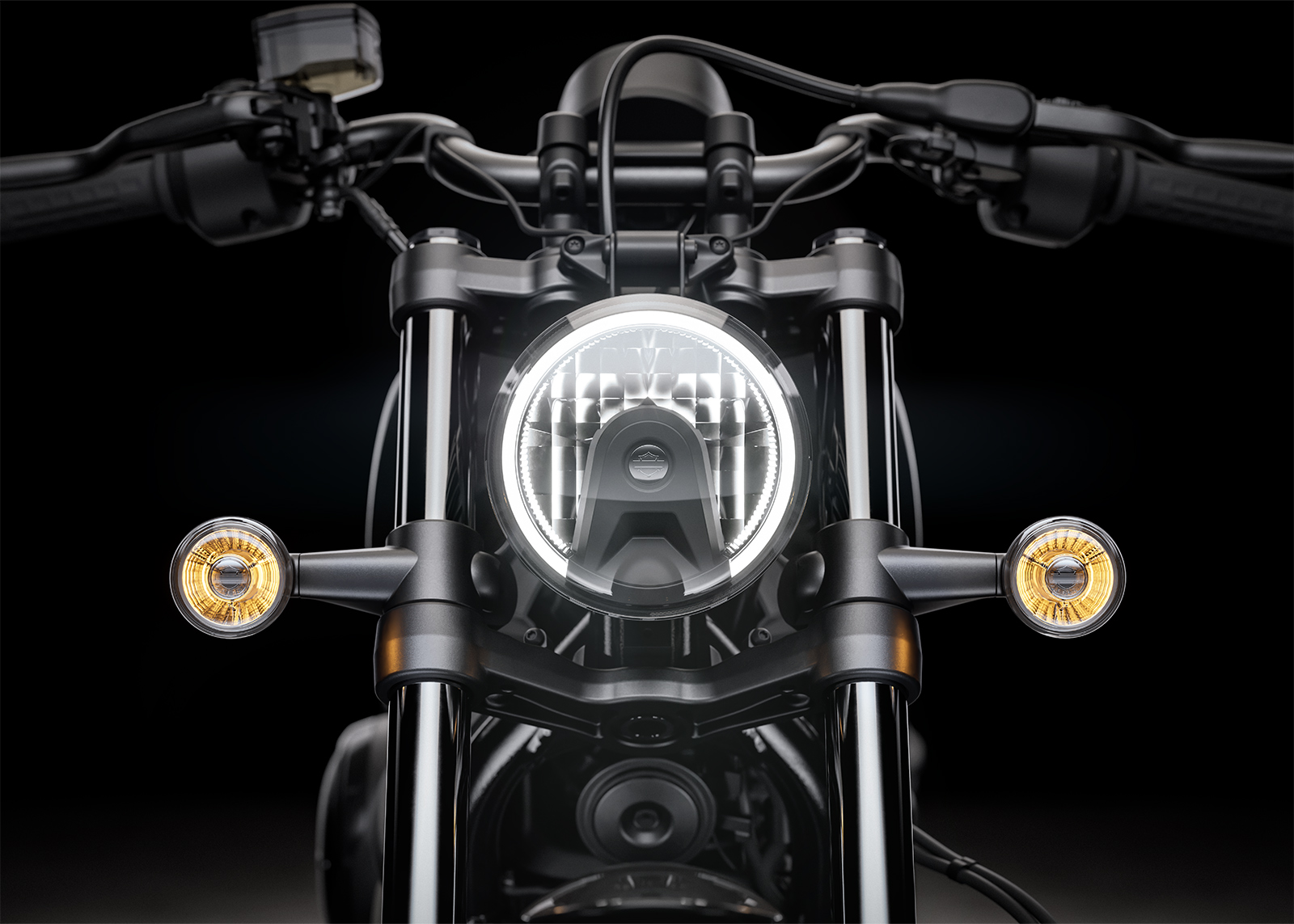

All LED headlamp, low and high beam with signature position lighting; All LED rear lighting; LED bullet turn signals

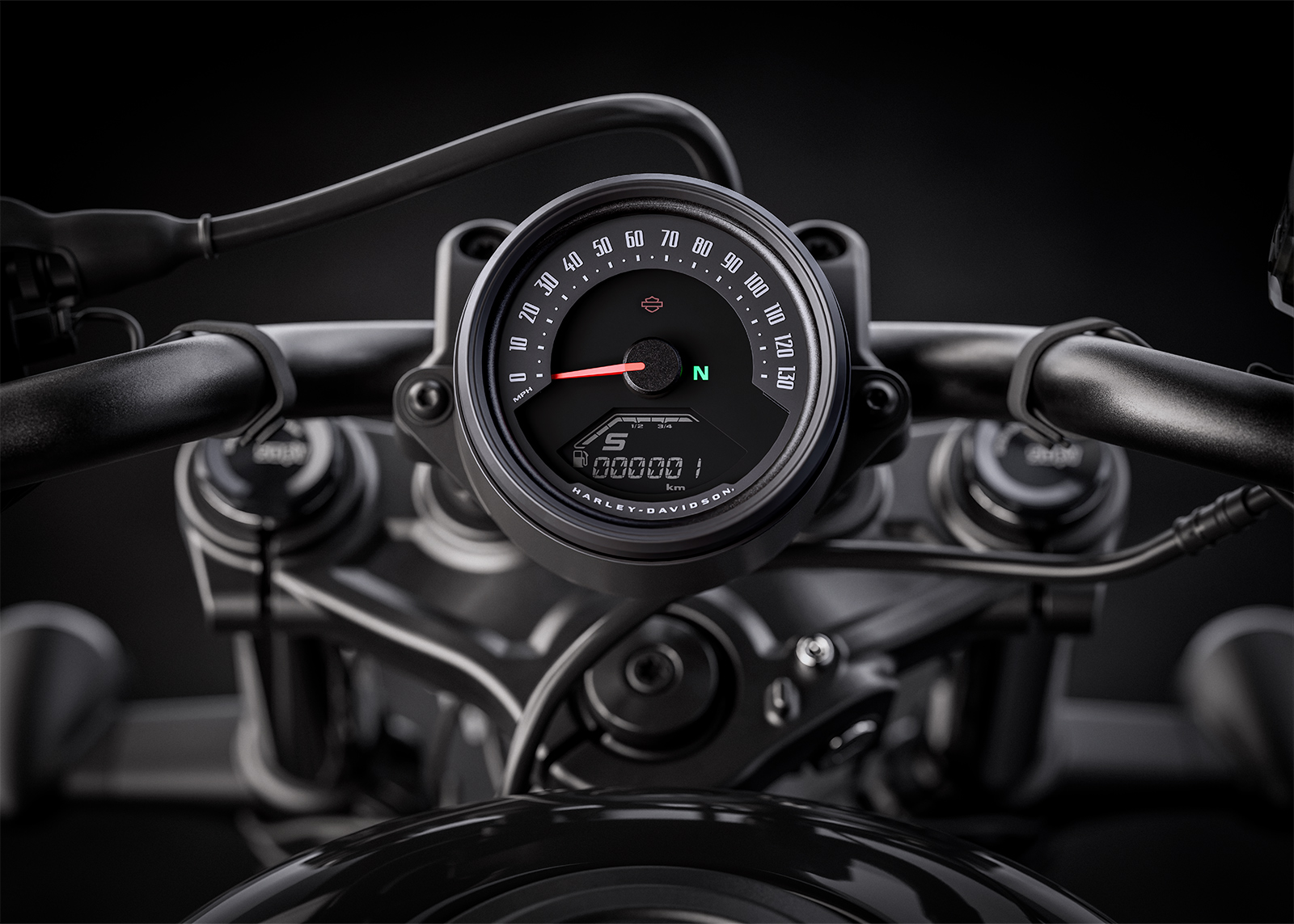

Gauges
4-inch viewable round gauge area analog display with, Speedometer, L/R turn Indication, Traction Control Indication, Coolant Temperature Alert, ABS alert, Fog Lamp Indication, Battery Voltage Alert, High Beam Indicator, Low Fuel Indication, Rear-ABS Disabled Indication, Failure-Indication Alert, Neutral Position Indication, Low Tire Pressure indication, Check Engine Light indication, Oil Pressure Alert, Service Indication.
Screen Size
4" Analog Instrument with Segmented LCD (102 mm)
Type
Analog display
Languages
English (default)
Anti-lock Brake System (ABS)
Included
Traction Control System (TCS)
Included
Drag-torque Slip Control System (DSCS)
Included
