2024 Street Bob 114

Trim:
Colour:
See your local dealer for pricing information.
*Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
At a glance

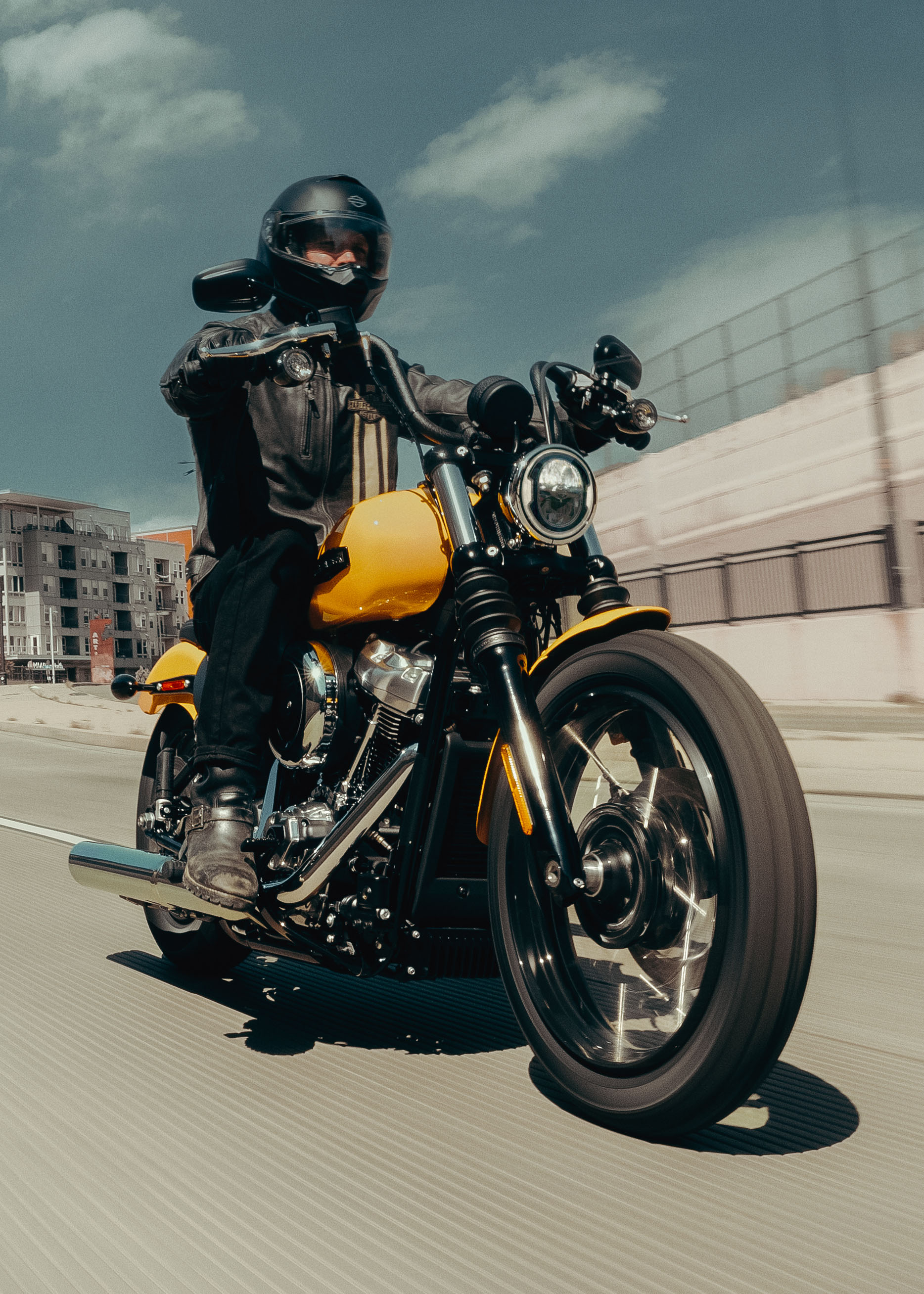

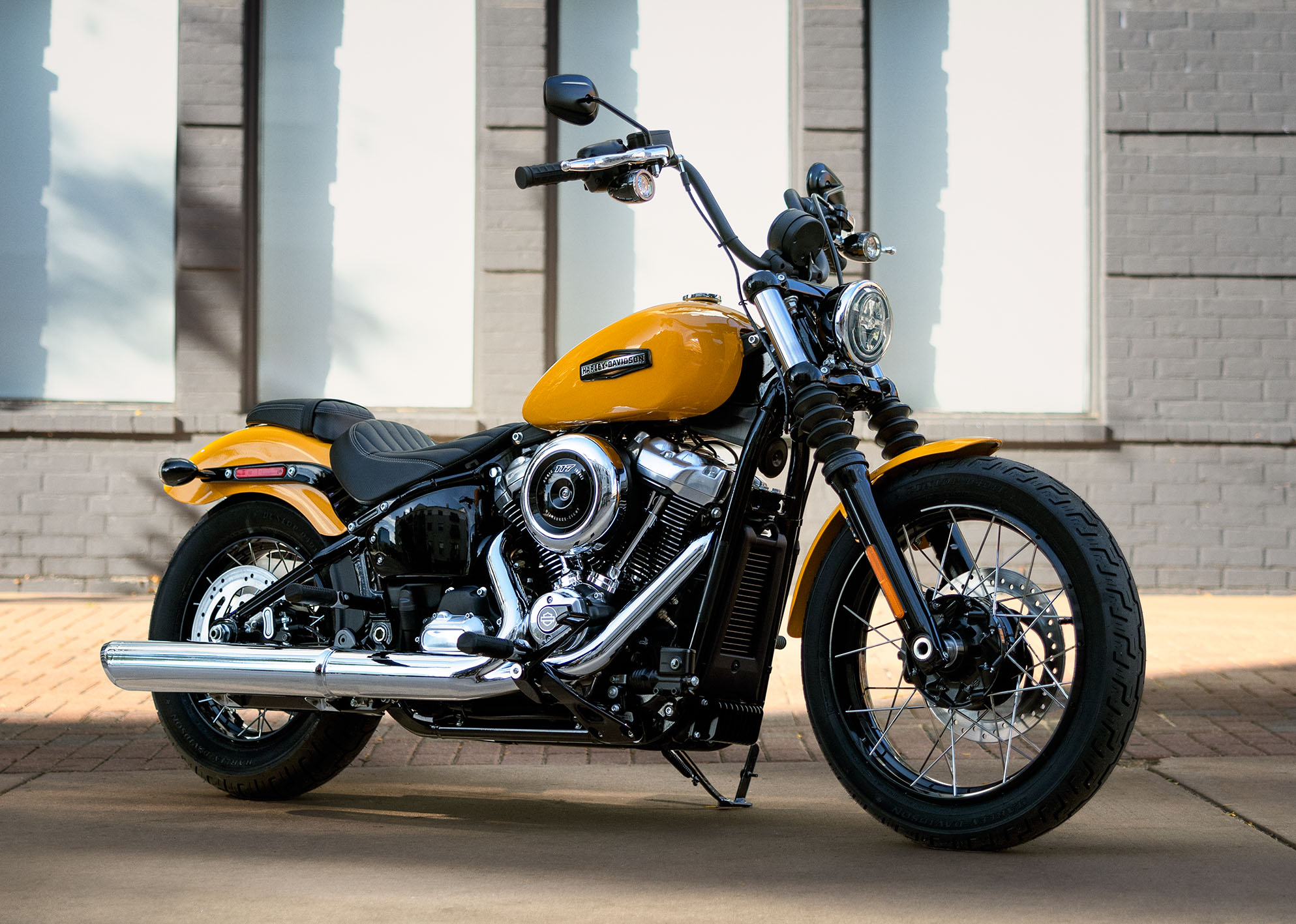

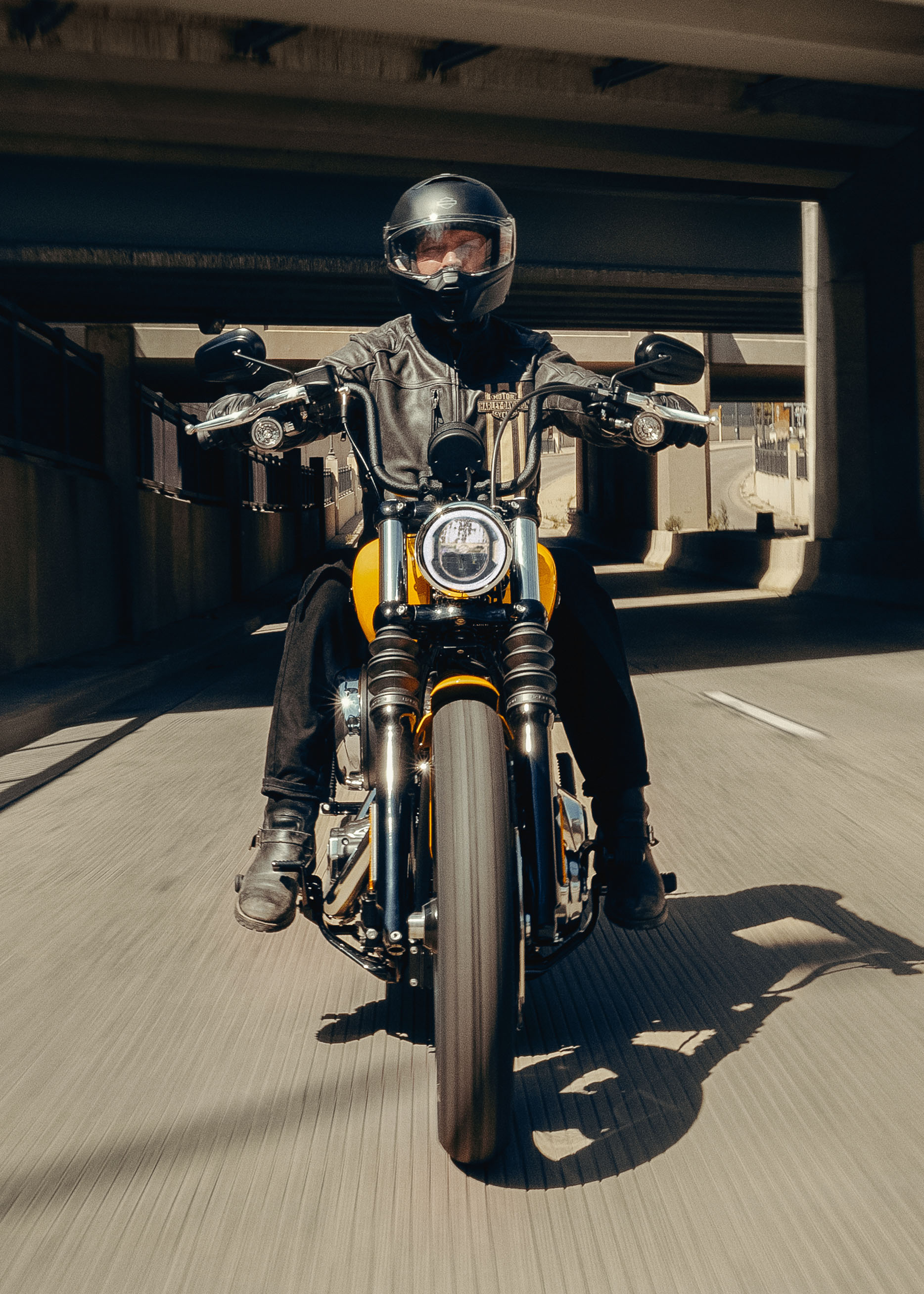

A perfect performance base for customisation, the Harley-Davidson Street Bob 114 is a gritty, lean, and mean bobber cloaked in black.

  • Upright riding position
  • Mid-mount foot controls
  • Passenger seat
  • Low
Detailed Specs
Length
2,320 mm
Seat Height, Unladen
680 mm
Ground Clearance
125 mm
Rake
30
Trail
157 mm
Wheelbase
1,630 mm
Tire, Type
Dunlop Harley-Davidson Series, bias blackwall front and rear
Tires, Front Specification
100/90B19,57H,BW
Tires, Rear Specification
150/80B16,77H,BW
Fuel Capacity
13.2 l
Oil Capacity (w/filter)
4.7 l
Weight, As Shipped
286 kg
Weight, In Running Order
297 kg
Engine 2
Milwaukee-Eight 114
Bore
102 mm
Stroke
114.3 mm
Displacement
1,868 cc
Compression Ratio
10.5:1
Fuel System
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-2 offset shotgun; catalyst in muffler
Engine Torque Testing Method
EC 134/2014
Engine Torque 3
155 Nm
Engine Torque (rpm)
3250
Horsepower
94 HP / 70 kW @ 5020 rpm
Lean Angle, Right (deg.)
28.5
Lean Angle, Left (deg.)
28.5
Fuel Economy Testing Method
EU 134/2014
Fuel Economy
5.5 l/100 km
CO2 Emissions Testing Method
EU 134/2014
CO2 Emissions
128 g/km CO2
Primary Drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.311
Gear Ratios (overall) 2nd
6.454
Gear Ratios (overall) 3rd
4.793
Gear Ratios (overall) 4th
3.882
Gear Ratios (overall) 5th
3.307
Gear Ratios (overall) 6th
2.79
Front Fork
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers
Rear Shocks
Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment
Wheels, Front Type 4
Black, Annihilator cast aluminum
Wheels, Rear Type 4
Black, Annihilator cast aluminum
Brakes, Caliper Type
4-piston fixed front and 2-piston floating rear
Brakes, Rotor Type
Solid, uniform expansion rotors
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights
All LED, low beam, high beam & signature position lamp; Integrated, multi-function LED stop/tail/turn signals; Incandescent bullet turn signals
Gauges
2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
Anti-lock Brake System (ABS)
Included
